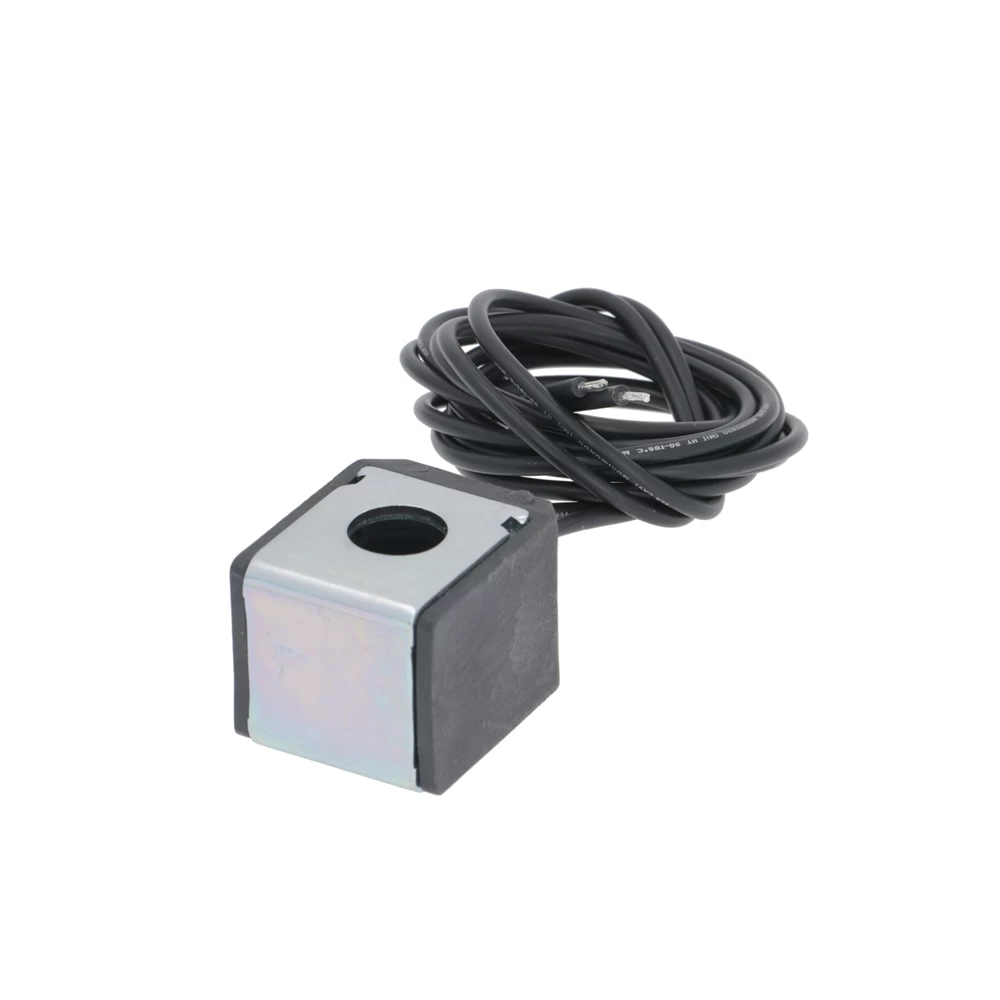

115V 50/60Hz 9W Hard Wired Parker Solenoid Coil

Used primarily in Spanish equipment. Length 34 mm – height 32 mm – depth 42 mm. The YB09 “Coil with flying leads” coils can be mounted with every Parker solenoid valve
corresponding to the specified coil group 20.1.
Coil manufactured with H class copper wire, moulded in thermoplastic
material polyester with 30% glass fiber.
IP67 protection rate. Electrical connection: 2 x 1000 mm cables.
This coil conforms to the IEC/CENELEC safety standards and complies
with European low-voltage directive.
For UL recognized version: UL file MH19410.
